500W Pulse Laser Cleaning Machine
Dawn Huang | Founder of Chihalo Laser | M.Sc. Engineering (HKU)
Hi! I am Dawn. With 10 years of field experience, I specialize in laser cleaning systems—from optical sourcing to automation. I write here to turn complex specs into actionable buying guides.
Welcome to contact me at dawn@chihalo.com or WhatsApp at +86 18608325040!
Table of Contents
Remove 10 Years of Rust in 10 Minutes — Zero Substrate Damage, Zero Chemicals, Zero Compromise
📋 Key Takeaways
- What it is: A 500W pulse laser cleaning machine uses pulsed fiber laser beams to remove rust, paint, and coatings from metal surfaces without damaging the substrate
- Cleaning speed: 4-10 m²/hour depending on contamination level
- Best for: Medium rust removal, paint stripping, pre-weld preparation, mold cleaning
- Price range: $15,000 – $20,000 USD (varies by configuration)
- Key advantage: Zero substrate damage, no chemicals, environmentally friendly
- Warranty: 2 years & lifetime support
Definition: A 500W pulse laser cleaning machine is an industrial surface treatment device that uses high-intensity pulsed fiber laser beams (1064nm wavelength) to remove rust, paint, coatings, and contaminants from metal surfaces. The pulsed delivery (10-500 nanoseconds per pulse) enables selective ablation of contaminants while leaving the base material completely undamaged.
See It In Action — Real Cleaning Results
Watch our 500W pulse laser cleaning machine remove years of rust in seconds.
These are actual results, not simulations.
Cleaning Performance Data
Based on internal testing conducted in December 2025 on standard carbon steel samples:
Surface Condition | Cleaning Time | Result |
Light surface rust (1-2 years) | 3-5 sec per 10cm² | Complete removal, bare metal exposed |
Medium rust (3-5 years) | 8-12 sec per 10cm² | 100% rust eliminated, ready for coating |
Heavy industrial rust (10+ years) | 15-25 sec per 10cm² | Full restoration to original metal |
Industrial paint (up to 200μm) | Single pass | Clean removal, no residue |
Powder coating (up to 150μm) | Single pass | Complete stripping |
* Test conditions: 500W power, 80% duty cycle, 100mm scanning width, room temperature 25°C

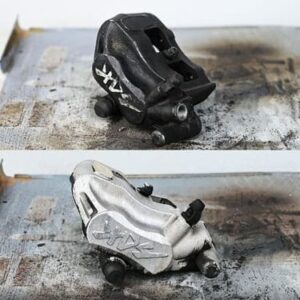

Before & After Results
What Can a 500W Pulse Laser Cleaning Machine Remove?
Understanding exactly what this machine handles helps you determine if it matches your application requirements.
Contamination Types & Effectiveness
Contaminant | Effectiveness | Typical Application |
Rust & Corrosion | ★★★★★ Excellent | Steel structures, machinery, automotive |
Paint & Coatings | ★★★★★ Excellent | Surface prep, restoration, rework |
Oxide Layers | ★★★★★ Excellent | Pre-welding treatment, electronics |
Welding Residue | ★★★★★ Excellent | Post-weld cleanup |
Oil & Grease | ★★★★☆ Very Good | Engine components, equipment |
Rubber Residue | ★★★★☆ Very Good | Tire molds, rubber processing |
Adhesive Films | ★★★★☆ Very Good | Manufacturing fixtures |
Compatible Base Materials
The 500W pulse laser cleaning machine works effectively on:
- Ferrous Metals:Carbon steel, stainless steel, cast iron, tool steel
- Non-Ferrous Metals:Aluminum, copper, brass, bronze, titanium
- Special Materials:Galvanized steel (selective removal), chrome-plated surfaces
Industry Applications
Aerospace & Aviation
Turbine blade cleaning, landing gear maintenance, composite surface activation, fastener hole preparation
Mold & Die Industry
Tire mold cleaning, injection mold maintenance, die casting mold restoration
Automotive Manufacturing
Weld preparation, body panel restoration, engine rebuilding, brake caliper cleaning
Shipbuilding & Marine
Hull plate preparation, deck maintenance, marine fitting restoration
Rail Transportation
Wheel set maintenance, bogie frame cleaning, rail car body preparation
Metal Fabrication
Pre-weld preparation, coating removal, surface activation for bonding
500W vs 300W vs 1000W — Which Power Level Do You Need?
The 500W pulse laser cleaning machine represents the optimal balance point for most industrial applications.
Here’s how the power levels compare:
Feature | 300W | 500W ★ Recommended | 1000W |
Best Application | Light rust, precision parts, molds | Medium rust, general industrial, most common uses | Heavy rust, thick coatings, shipyard |
Cleaning Speed | 3-5 m²/hour | 4-10 m²/hour | 8-15 m²/hour |
Precision Level | Highest | High | Medium |
Substrate Damage Risk | Lowest | Low | Medium (requires careful setup) |
Power Consumption | <3KW | <6KW | <10KW |
Price Range (USD) | $15,000-$20,000 | $18,000-$26,000 | $28,000-$40,000 |
Ideal User | Mold shops, precision manufacturers | General manufacturing, auto repair, most industrial | Shipyards, heavy industry |
Our Recommendation: For 80% of industrial applications, the 500W pulse laser cleaning machine provides the optimal combination of cleaning power, precision, and value. Choose 300W only for dedicated precision work, or 1000W only for heavy industrial environments with thick corrosion.
Pulse Laser vs Continuous Laser — Key Differences
Characteristic | Pulse Laser (Recommended) | Continuous Laser |
Energy Delivery | Short intense bursts (nanoseconds) | Constant beam |
Heat to Substrate | Minimal — substrate stays cool | Higher — risk of thermal damage |
Best For | Precision work, delicate surfaces, molds | Large flat areas where speed is priority |
Substrate Safety | Excellent | Good (with proper settings) |
Price | Higher | Lower |
Bottom Line: For applications requiring surface integrity preservation, pulse laser is the safer choice.
Technical Specifications
Complete technical parameters for the 500W pulse laser cleaning machine.
Laser Parameters
Laser Type | Pulsed Fiber Laser (MOPA) |
Average Output Power | 500W |
Peak Power | >10kW |
Laser Source Brand | JPT / MAX (selectable) |
Wavelength | 1064nm ±5nm |
Pulse Width | 10-500ns (adjustable) |
Pulse Frequency | 1-4000 kHz |
Max Pulse Energy | 2mJ, 5mJ, 15mJ, 50mJ |
Beam Quality (M²) | <1.8 |
Optical System
Scanning Width | 10-150mm (adjustable) |
Scanning Speed | Up to 8000mm/s |
Focal Length | 254mm standard |
Fiber Cable Length | 10m (5/15/20m optional) |
Cleaning Head Weight | <1.5kg |
Cleaning Modes | 8 preset + 50 custom |
Red Light Aiming | Yes |
Machine Specifications
| Cooling Method | Water cooling (closed loop) |
| Power Supply | AC 220V±10%, 50/60Hz |
| Power Consumption | <6KW |
| Operating Temp | 0-40°C |
| Humidity | ≤80% non-condensing |
| Protection Class | IP54 |
| Certifications | CE, FDA compliant |
Key Features & Technology
⚡JPT/MAX Laser Source
Top-tier industrial laser sources with 100,000+ hour lifespan, exceptional beam quality, and built-in anti-reflection protection for safe operation on reflective metals.
🎛️8-Mode Intelligent Cleaning
Pre-configured cleaning modes (Line, Rectangle, Circle, Sine, Spiral, Free, Edge, Fine) plus 50 custom parameter storage slots for quick job switching.
✋Ergonomic Handheld Design
Cleaning head weighs under 1.5kg for fatigue-free extended operation. 10-meter fiber cable provides wide working radius. Integrated red light aiming.
🏭Industrial-Grade Construction
Heavy-gauge steel enclosure (IP54), sealed electrical compartments, industrial casters with locks, integrated cable management for demanding environments.
🌱Eco-Friendly Operation
No chemicals, no liquid waste, no secondary pollution. Only byproduct is particles captured by fume extraction. Fully compliant with environmental regulations.
🔧Automation Ready
Extended IO, RS485, and Ethernet interfaces for robotic integration. Mount on robot arms or gantry systems for high-volume automated cleaning.
How Pulse Laser Cleaning Works
The Science of Selective Ablation
Pulse laser cleaning operates on the principle of selective absorption. When high-intensity laser pulses strike a contaminated surface, contaminants (rust, paint, oil) absorb laser energy much more readily than clean metal. The contaminant rapidly heats and vaporizes, while the substrate reflects most energy and stays cool.
The key is the extremely short pulse duration—typically 10-500 nanoseconds. This is fast enough that heat cannot conduct into the base material before the pulse ends. Result: complete contaminant removal with zero thermal damage to the substrate.
The 5-Step Cleaning Process
- Absorption
Contaminants absorb laser pulse energy
- Rapid Heating
Temperature rises in microseconds
- Vaporization
Contaminants vaporize or ablate
- Ejection
High-pressure vapor ejects particles
- Clean Surface
Substrate remains cool and undamaged
Why No Damage to Base Material?
Different materials have different absorption characteristics at the 1064nm wavelength. Rust and paint absorb this wavelength efficiently (they heat up), while clean metal reflects most of the energy (stays cool). Combined with nanosecond-duration pulses, this creates selective removal of only unwanted material.
Additionally, operators can fine-tune pulse energy, frequency, and scan speed for different materials. Always perform a small test area first when working with new substrates.
What's Included & Pricing
Complete Package Contents
Item | Quantity | Notes |
500W Pulse Laser Cleaning Machine | 1 | Complete integrated unit |
Handheld Cleaning Head | 1 | With 10m fiber cable |
Laser Safety Glasses | 2 pairs | OD8+ at 1064nm |
Power Cable | 10m | No need transfter unit |
User Manual & Training Materials | 1 set | English language |
Tool Kit | 1 | For basic maintenance |
Spare Protective Lenses | 5 | For cleaning head |
Pricing
Configuration | Price Range (USD) | Includes |
Standard Package (JPT Source) | $18,000 – $22,000 | Full package with 10m cable |
Premium Package (MAX Source) | $22,000 – $26,000 | Full package + extended accessories |
Automation-Ready Package | $25,000 – $30,000 | Includes integration interfaces |
* Prices valid as of January 2026. Contact us for current pricing and promotions.
30-Day Money-Back Guarantee
Not satisfied? Return within 30 days for a full refund. Machine must be in original condition.
We arrange return shipping pickup. No questions asked.
Shipping, Warranty & Support
Fast Shipping from US Stock
US Ground (Free) | 5-7 business days |
US Expedited | 2-3 business days |
International Air | 7-14 business days |
All shipments include professional crating, freight insurance, and tracking.
Comprehensive Warranty
Complete Machine | 2 Years |
Laser Source | 2 Years |
Technical Support | Lifetime |
Covers manufacturing defects and component failures. Extended warranty available.
Lifetime Technical Support
- Phone & video troubleshooting
- Remote diagnostic assistance
- Application parameter guidance
- Spare parts availability
- Training video library access
Frequently Asked Questions
A 500W pulse laser cleaning machine is an industrial device that uses high-intensity pulsed fiber laser beams to remove rust, paint, and coatings from metal surfaces without damaging the substrate. The pulsed delivery (nanosecond bursts) enables precise, heat-free cleaning.
Pulse laser cleaning uses selective ablation. Contaminants absorb laser energy and vaporize instantly, while the base metal reflects most energy. The extremely short pulses (10-500 nanoseconds) prevent heat transfer to the substrate, leaving it undamaged.
Yes. 500W removes light-medium rust at 6-10 m²/hour and heavy rust at 3-5 m²/hour. It effectively handles 80% of industrial rust removal needs. Only extreme cases like shipyard-level corrosion may need 1000W.
No, when properly configured. Pulse laser cleaning is non-contact and parameters are adjustable for different materials. Always perform a small test area first. Most metals including thin sheet metal can be safely cleaned.
Cleaning speed: Light rust 8-10 m²/hour, medium rust 5-8 m²/hour, heavy rust 3-5 m²/hour. Speed varies by contamination thickness and scanning width settings.
Pulse lasers deliver short intense bursts, minimizing substrate heat—ideal for precision work. Continuous lasers emit constant beams, faster for large flat areas but with higher thermal risk. Pulse is preferred for quality-critical applications.
Yes, with proper safety measures: OD6+ laser glasses at 1064nm, adequate ventilation, and training. Equipment includes safety interlocks and emergency stops. Comprehensive safety training is included with purchase.
Yes. Laser cleaning uses no chemicals, produces no liquid waste, and creates no secondary pollution. The only byproduct is particles captured by fume extraction. It's fully compliant with environmental regulations.
Most metals: carbon steel, stainless steel, cast iron, aluminum, copper, brass, titanium. Removes: rust, paint, powder coating, oxide layers, oil, welding residue, rubber residue, and adhesives.
Price range: $18,000-$26,000 USD depending on laser source brand (JPT/MAX), fiber cable length, and accessories. Contact us for a customized quote based on your requirements.
1-year warranty on complete machine, 2-year warranty on laser source. Includes lifetime technical support, troubleshooting assistance, and spare parts availability. Extended warranty options available.
Yes. Supports extended IO, RS485, and Ethernet interfaces. Compatible with robotic arms and gantry systems. Automation-ready packages and integration guidance available.
Yes, included free: video tutorials, user manual, remote training session, and ongoing application support. Most operators become proficient within 2-4 hours. No technical background required.
Yes. 30-day satisfaction guarantee—full refund if not satisfied. Machine must be in original condition. We arrange return shipping pickup. This reflects our confidence in equipment quality.
Get a customized quote for your 500W pulse laser cleaning machine within 24 hours.
Free shipping to continental US. 30-day money-back guarantee.
